คีย์บอร์ด Chilkey รุ่น ND65

PCB Type : Tri-mode 1.2mm Flex Cut

The ND65 is available tri-mode options, featuring an all-aluminum body design that delivers outstanding cost performance. while the tri-mode ND65 features a colorful RGB option.While keeping with the classic, minimal design, we wanted people to be able to add their own level of flair to the product via the side lighting.

รายละเอียดสินค้า

  • Finish Treatment: Anodized
  • Case Material: CNC 6063 Aluminum
  • PCB: Wired/Tri-mode
  • Keyboard Layout: 65%
  • Forehead Height: 20 mm
  • Mounting Style: Gasket Mount
  • PCB Thickness: 1.2mm Flex cut
  • Switch Type: North Facing LED
  • Supported Hot Swappable: Yes
  • Stabilizer Type: Plate Mount
  • Battery Capacity: 2* 3000 mah(Tri-mode)
  • Default Plate: PC
  • Bluetooth Version: Bluetooth 5.0(Tri-mode)
  • Connection Methods: Wired/Tri-mode
  • Supported Layouts: ANSI
  • VIA/QMK Support : N/A
  • Dimension: 315 x 108 x 32mm
  • Wired Polling Rate: 1000HZ
  • OS Compatibility: Win/Mac
  • Switch: Kailh Blue Lotus
  • Switch Type: Linear
  • Top Housing Material: PC
  • Bottom Housing Material: PA66+30%GF
  • Stem Material: POM
  • Total Travel: 3.5±0.4mm
  • Pre-Travel: 1.9±0.5mm
  • Actuation Force: 45±10gf
  • Preload: 45±10gf
  • Bottom-out Force: 50±10gf
  • Lifespan: 50mil
  • Lubing: Factory Lubed
  • Keycap Material: PBT
  • Keycap Technology: Doubleshot
  • Keycap Profile: Cherry
  • Keys QTY: 67keys

Kit Content

  1. Keyboard (Includes Blue Lotus Switches, tri-mode with batteries*2, keycaps)
  2. Instruction Manual (Chinese and English) x1
  3. TYPE-C Cable x1
  4. Blue Lotus Switches x3
  5. Double-Headed Keycap and Switch Puller x1

มีสินค้า

รหัสสินค้า: CH-ND65 หมวดหมู่:

คำอธิบาย

About ND65 Tri-Mode

The ND65 is available tri-mode options, featuring an all-aluminum body design that delivers outstanding cost performance.

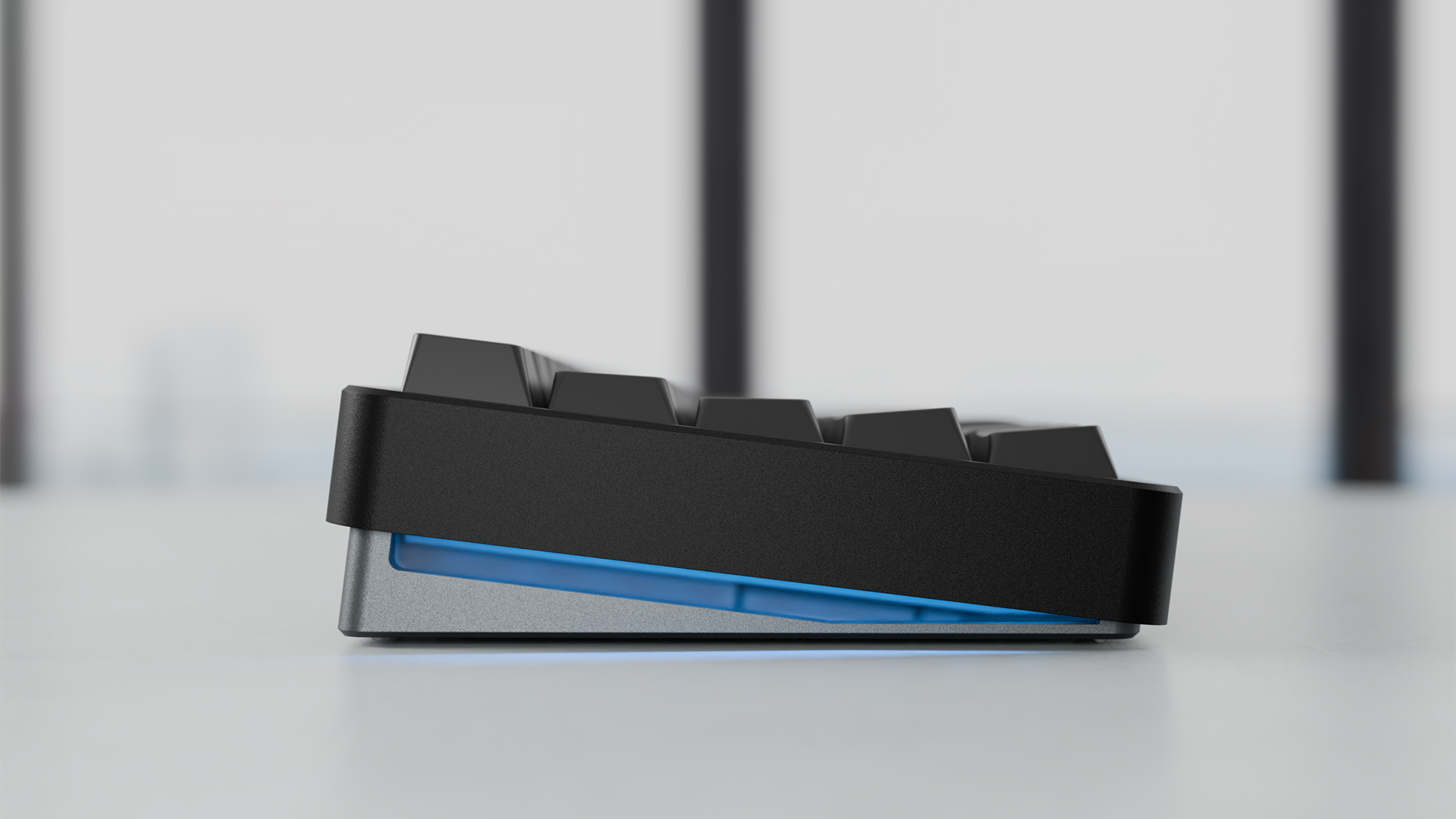

Sidelight Design

The single-mode ND65 features a white sidelight to the left and right, while the tri-mode ND65 features a colorful RGB option.While keeping with the classic, minimal design, we wanted people to be able to add their own level of flair to the product via the side lighting.

Rainbow Backlight

Enhance your typing experience with vibrant rainbow backlighting. Crafted from durable dye-sublimated PBT, the dual-color keycaps feature a see-through design, allowing the lighting to shine through from the front.

Internal Structure

Gasket mount, with 8 evenly distributed silica gel particle, offers a softer and more resilient overall feel.With 5 layers padding, it ensures more focused sound and provides an authentic HiFi experience.

ND65 Switches

ND65 Keycaps

Cherry profile with PBT keycaps for increased durability

Dual-system Compatibility

ND65 supports dual-system switching

ND65 Exploded View

ND65 Dimension
